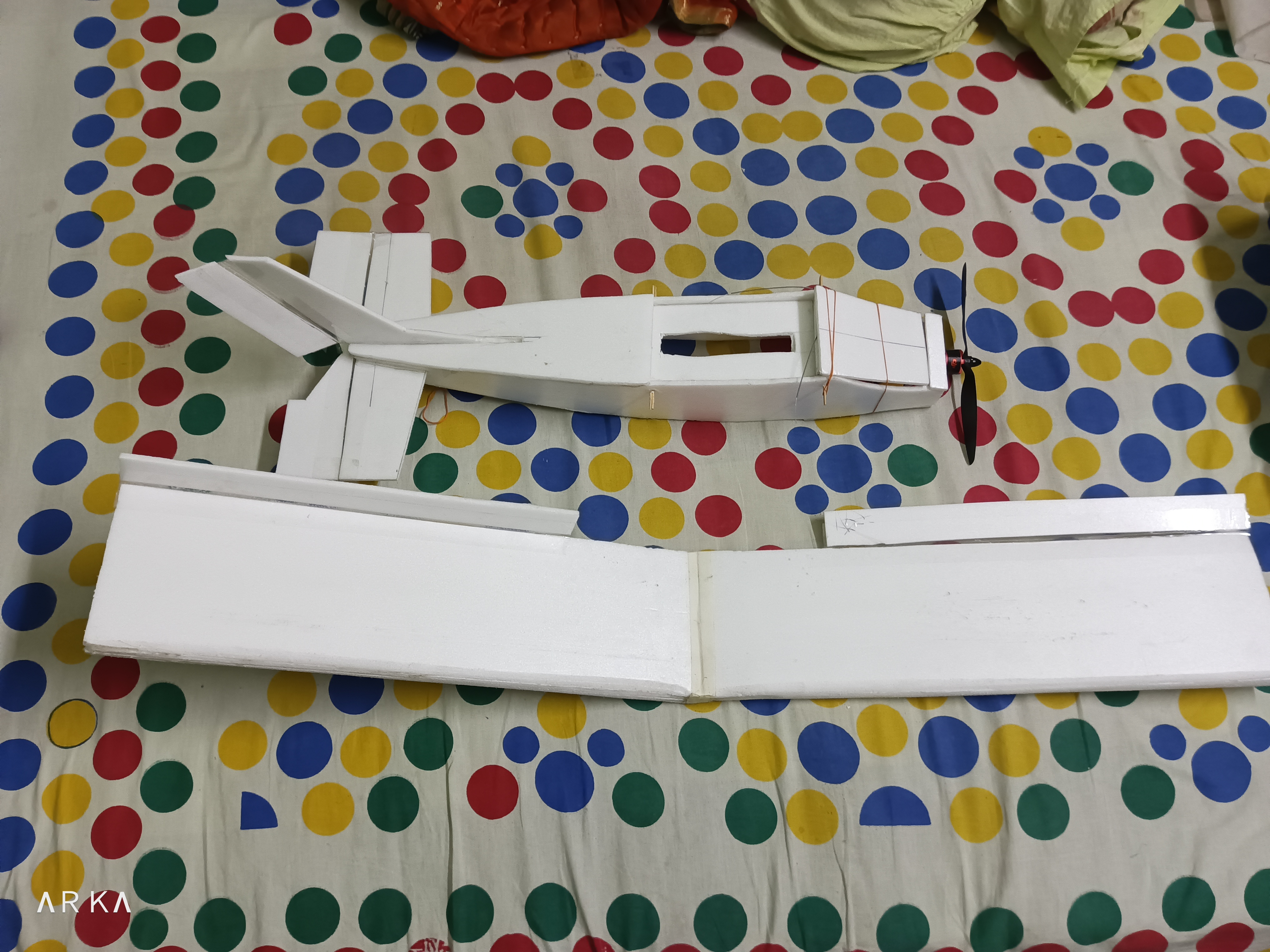

Assembled RC aircraft ready for maiden flight.

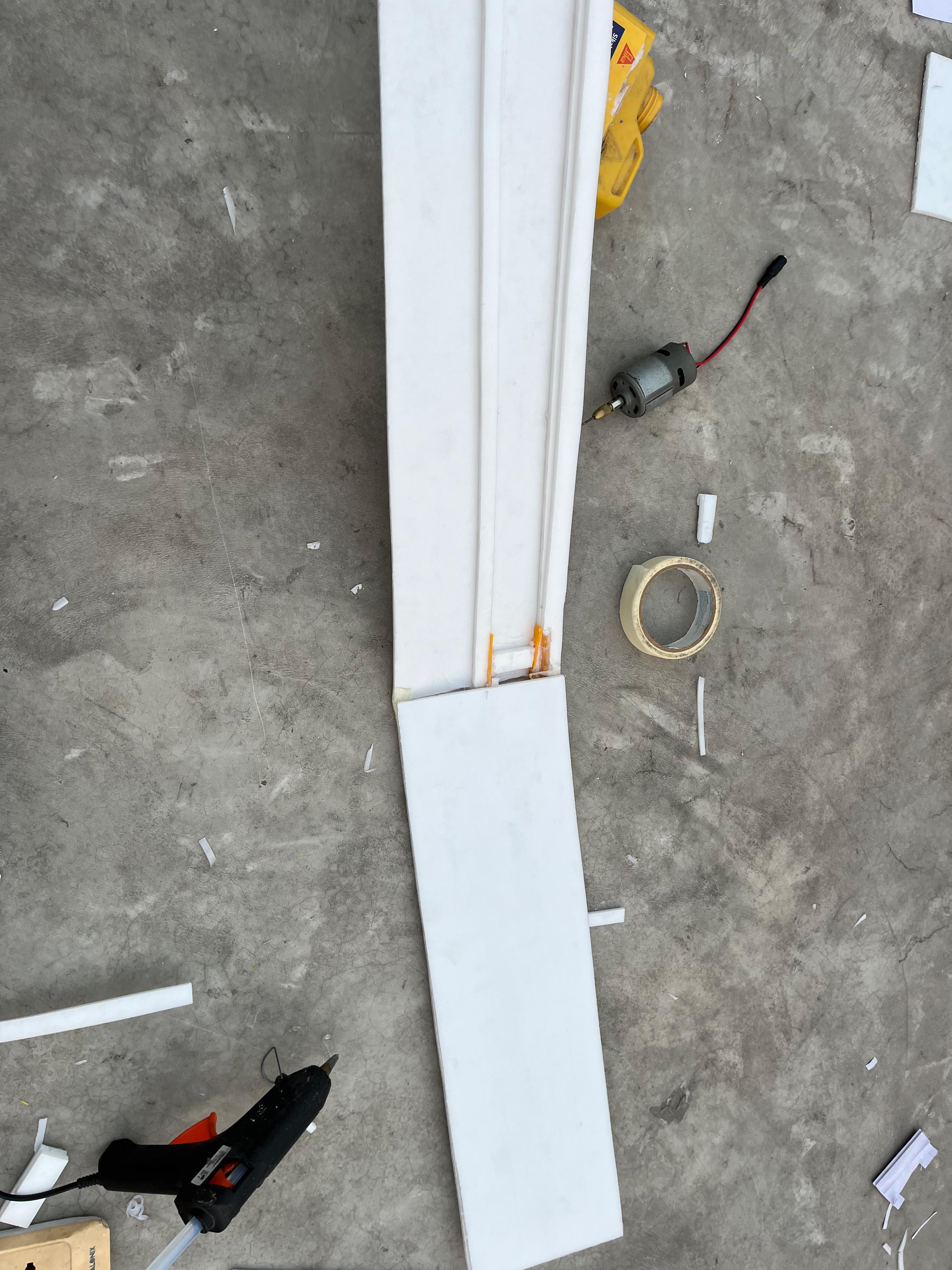

The Cessna-style wing geometry and foam-cut precision.
Overview
This RC plane was handcrafted from scratch without CAD, inspired by the iconic Cessna layout. It features a stable high-wing configuration, perfect for training and slow, stable flights. Built using Depron foam, the aircraft is lightweight, resilient, and efficient for manual remote-controlled flight.
Build Details
- Airframe built from 5mm Depron foam
- Wing span manually calculated and cut using templates
- Control surfaces: Elevator, Rudder, Ailerons
- Reinforced spars and lightweight bulkhead design
- No SolidWorks — designed entirely by hand
Electronics Used
- 920KV Brushless DC motor
- 40A ESC for reliable throttle control
- 3x 9g servos for flight surface control
- Standard 6CH RC transmitter & receiver
- 11.1V 2200mAh LiPo battery
